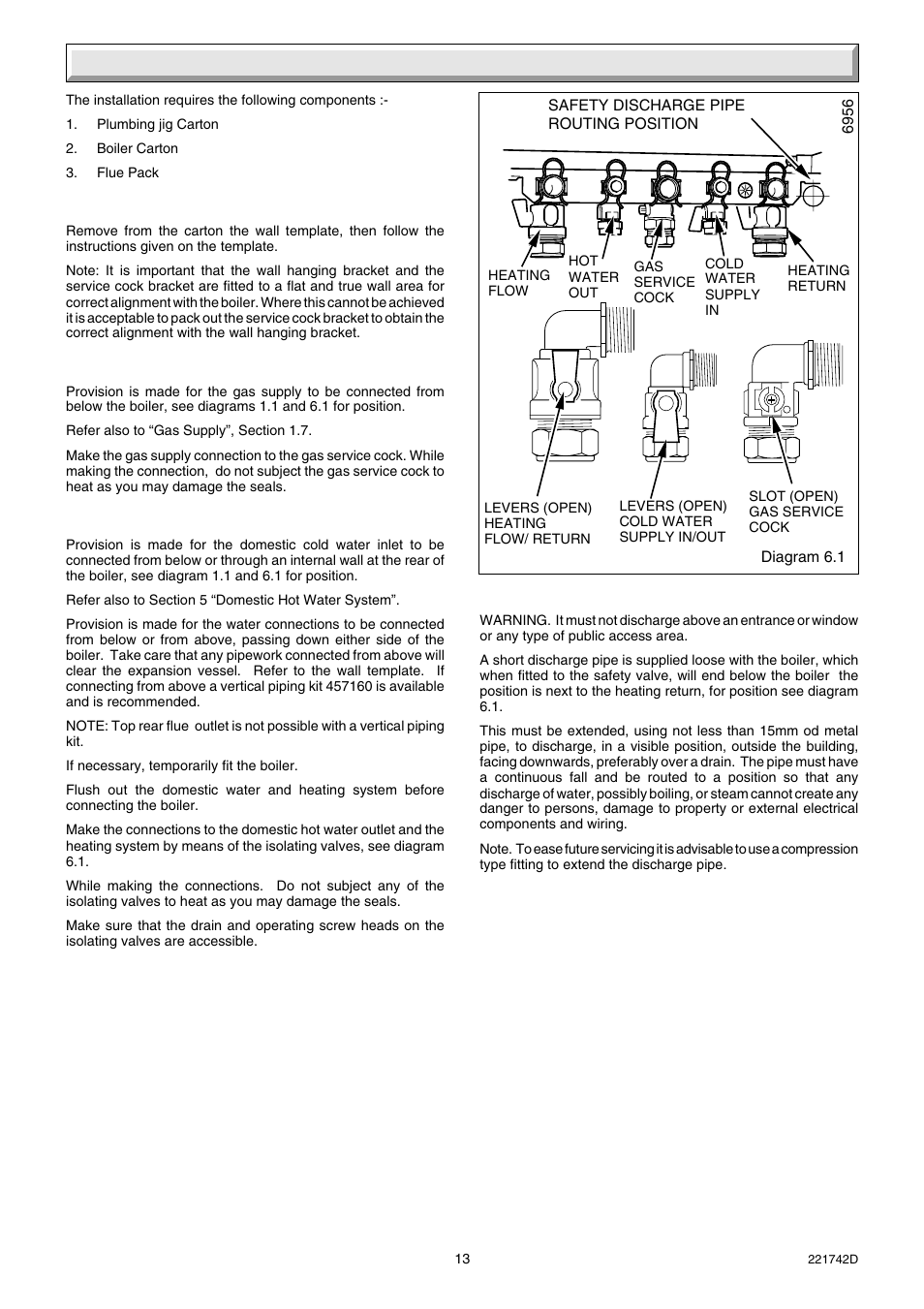

Where this cannot be achieved it is acceptable to pack cokpact the service cock bracket to obtain the correct alignment with the wall hanging bracket.
Guarantee Registration Thank you for installing a new Glow-worm appliance in your home. Glow-worm appliances’ are manufactured to the very highest standard so we are pleased to offer our customers’ a Comprehensive First Year Guarantee. The boiler is room sealed, so where the boiler is fitted in a room or space, a permanent air 3.
Open a tap to create demand. Important Information Testing and Certification This boiler is tested and certificated for safety and performance. One Contact Local Service.
Page 38 14 Replacement of Parts Replacement Of Parts 14 Replacement of Parts Faulty domestic hot water switch. Unplug fan and check coil resistance. CALL Page 31 13 Fault Finding NB. Don’t have an account? Remove the bypass tube majual to Section General Data 11 General Data Spare Parts 15 Spare Parts Our Guarantee gives you peace of mind plus valuable protection against breakdown by covering the cost of:. Regulations, be handed to the user on completion of the installation.
13 fault finding – Glow-worm Compact 80E User Manual
Check gas control valve cables. Instructions for Use 3. Plumbing Jig Remove from the carton the wall template, then follow the instructions mahual on the template. Complain wrong Brand wrong Model non readable. If necessary, temporarily fit the boiler. Make the gas supply connection to the gas service cock. In the centre pages are to be found your Guarantee Registration Card, which we recommend you complete and return as soon as possible.
Glow-worm Compact 80E User Manual
Page 35 14 Replacement of Parts Boiler Position 2 Boiler Position 2. Glow-worm economy plus 30 b balanced flue boiler 24 pages. Page 33 14 Replacement of Parts Remove the pressure gauge, see diagram Set day of week by pressing button DAY. Take care that any pipework connected from above will maanual the expansion vessel.
Servicing 12 Servicing Before replacing any of the parts removed during servicing, Page 5 Instructions for Use 4. Compact eCompact 75e.
Take care the user of the efficient and safe operation of the boiler. Does domestic hot water get hot when pushed in and central heating water get hot when released.
Glow-worm Compact 80E User Manual | Page 13 / 44
If this card is missing you can obtain a copy or record your registration by telephoning the Heatcall Customer. Check filters are clean and allow adequate water flow. Glosworm rear flue outlet is not possible with a vertical piping kit.
It must not discharge above an entrance or window or any type of public access area. To ease future servicing it is advisable to use a compression type fitting to extend the discharge pipe. Provision is made for the water connections to be connected from below or from above, passing down either side of the boiler.
Burner pressure increases to full rate. Page 44 15 Spare Parts Diagram Heating System The remaining circulating pressure head available from the boiler 880e shown in diagram 4. Got it, continue to print.
15 spare parts | Glow-worm Compact 80E User Manual | Page 43 / 44 | Original mode
Please read these instructions and follow them carefully for the The colours of three core flexible cable are, blue – neutral, brown safe and economical use of your Combination boiler. Table of Contents Add to my manuals Add. Page of 44 Go.
Electrical Connections gloqworm 8 Mounting the boiler 8. Page 15 7 Flue Preparation 7.
Page 23 10 Commissioning Remove the pressure gauge and tighten the test point screw. Thank you for installing a new Glow-worm appliance in your home. It is important that the wall hanging bracket and the service cock bracket are fitted to a flat and true wall area for correct alignment with the boiler. Page 28 13 Fault Finding
